Oil Cooler

STC SA01768SE — Keep Continental C-series / O-200 / O-300 oil temperatures in the green.

← All STC products

Is your Continental C-Series, O-200, or O-300 engine running hot oil temperature? Our oil cooler system helps keep temps in the green.

Note: This IS NOT a complete kit. We only sell the STC with our diverter block and fittings for the block. ALL other component parts (oil filter adapter, oil cooler, etc.) must be purchased separately from 3rd party seller (Aircraft Spruce, McFarlane Aviation, etc.) Some component parts can be fabricated. See installation instructions for fabricated parts drawings and bill of materials for parts needed.

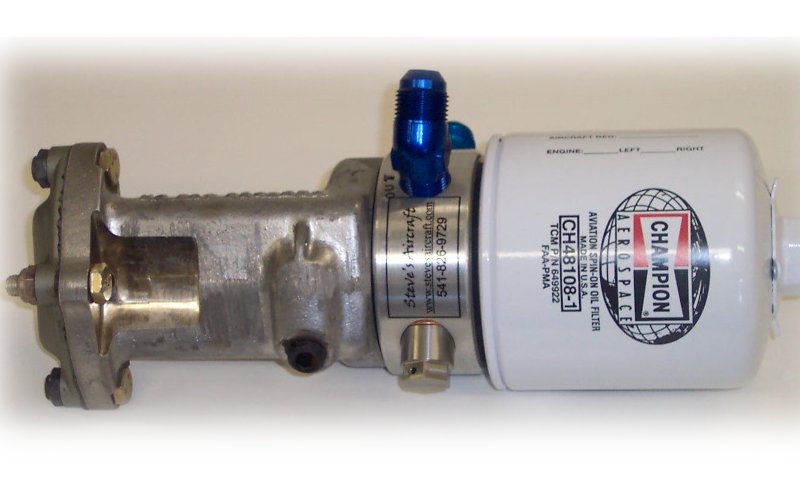

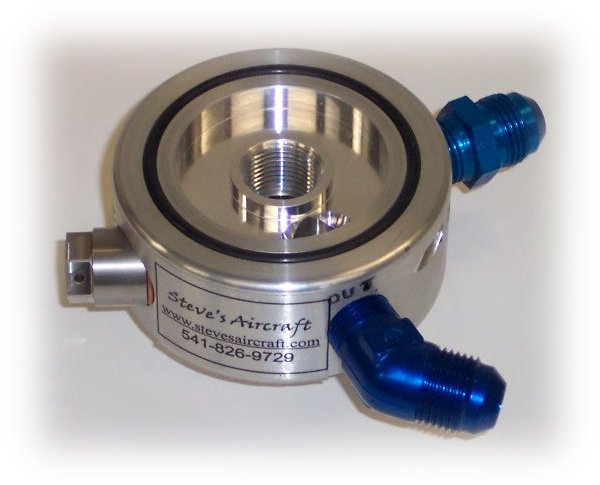

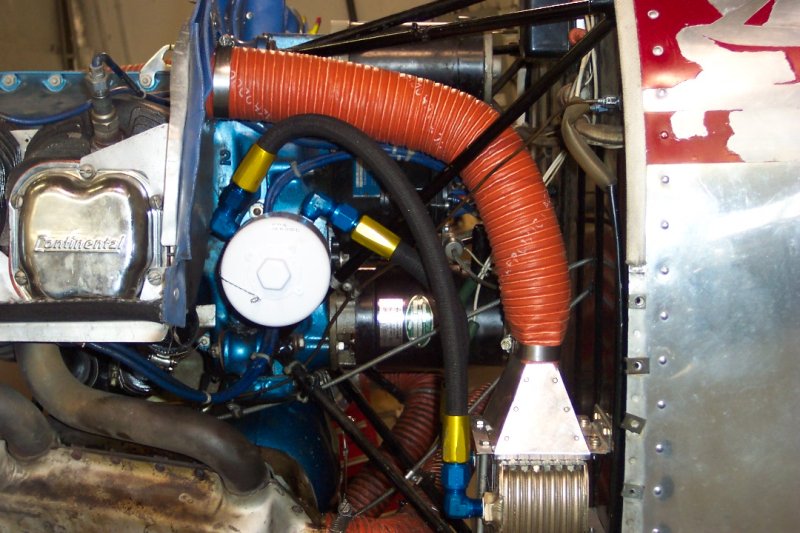

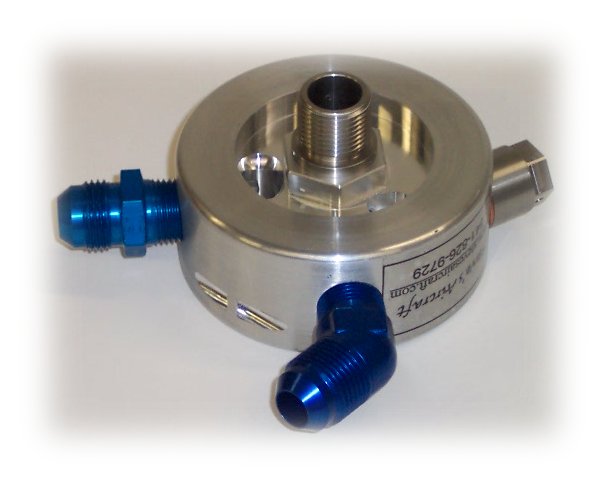

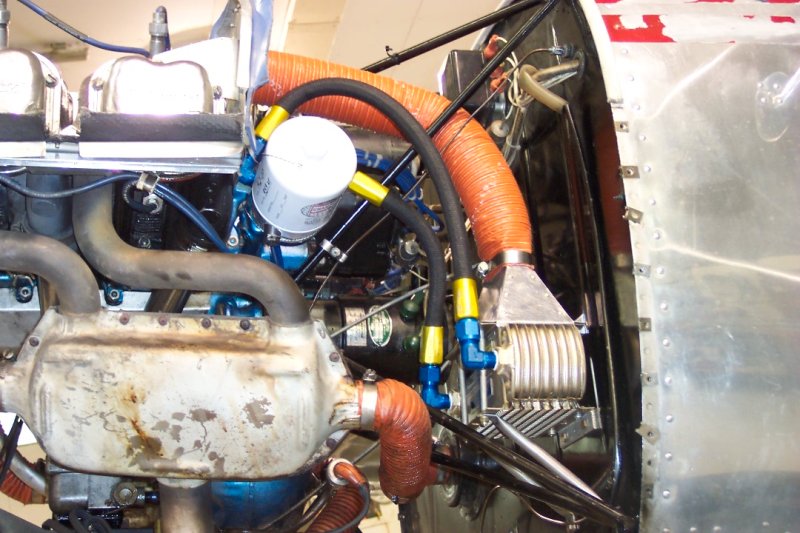

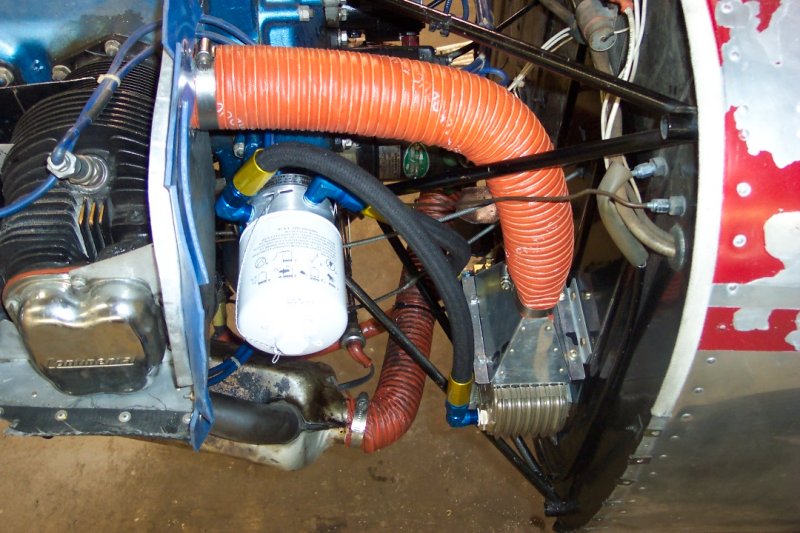

Oil cooler blockOil cooler blockOil cooler blockOil cooler installOil cooler installOil cooler install

Download installation instructions

$400.00 + $25.00 shipping

After adding items, submit your order, then call 541-826-9729 Mon–Fri 8am–5pm Pacific to pay by credit card over the phone. We do not take payment online.

Approved model list

Make / ModelT.C.Notes
Aeronca
11BC, S11BC		 A‑761 C‑85 engine.
Aeronca
11CC, S11CC		 A‑796 C‑85 engine.
Aeronca
15AC		 A‑802 C‑145 or 0‑300 engine.
Aeronca
7BCM, 7DC, S7DC, Army L‑16A		 A‑759 C‑85 engine.
Aeronca
7CCM, S7CCM, Army L‑16B, 7EC, S7EC, 7FC, 7JC		 A‑759 C‑90 engine.
Aeronca
7ECA		 A‑759 0‑200 engine.
Cessna
120, 140		 A‑768 C‑85 or C‑90 engine.
Cessna
140A		 5A2 C‑90 engine.
Cessna
150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150I, 150J, 150K, 150L, 150M		 3A19 0‑200 engine.
Cessna
170, 170A, 170B		 A‑799 C‑145 or 0‑300 engine.
Cessna
172, 172A, 172B, 172C, 172D, 172E, 172F, 172G, 172H		 3A12 0‑300 engine.
Emigh
Trojan A‑2		 A‑801 C‑85 engine.
Funk
B85C		 A‑715 C‑85 or C‑90 engine.
Luscomb
8E, 8F, T8F		 A‑694 C‑85 or C‑90 engine.
Maule
M‑4, M4C, M4S, M4T		 3‑A23 0‑300 engine.
Make / ModelT.C.Notes
Meyers
MAC‑125C		 3AI C‑125 engine.
Meyers
MAC‑145		 3AI C‑145 engine.
Piper
J‑3		 A‑691 Piper Option 311 C(7), C(8), C(9) or C(10) engine.
Piper
PA‑11		 A‑691 Piper Option 311 D(4) or D(5) engine.
Piper
PA‑18, PA‑19		 1A2 C‑90 engine.
Rearwin
185		 A‑729 C‑85 engine.
Swift
GC‑1A		 A‑766 C‑85 engine.
Swift
GC‑1B		 A‑766 C‑125 engine.
Taylorcraft
BC12D‑85, BCS12D‑85, BC12D‑4‑85, BCS12D‑4‑85		 A‑696 C‑85 engine.
Taylorcraft
Model 19		 1A9 C‑85 engine.
Taylorcraft
Model F19		 1A9 0‑200 engine.
Univair (Alon)
A2, A2A		 A‑787 C‑90 engine.
Univair (Erco)
E, G		 A‑787 C‑85 engine.
Univair (Forney)
F‑1, F‑1A		 A‑787 C‑90 engine.
Univair (Mooney)
M10		 A‑787 C‑90 engine.
