Is your Continental C-Series, 0-200, 0-300 engine running with hot oil temperature?
Our Oil Cooler System will keep your oil temperature in the "GREEN!"
STC-SA01768SE
|
Outside Air temp. at departure 100 Deg. Lost 30 Deg temp. in 2 min time |
||
| 140 Performance Chart | ||
| Time | Altitude | Oil Temp. |
| Depart | 1400 MSL | 110 Deg. |
| 12 min | 6500 MSL | 210 Deg. |
| 24 min | 8500 MSL | 210 Deg. |
| 26 min | 8500 MSL | 190 Deg. |
| Descent with Power | 170 Deg. | |
| Download Installation Instructions for Oil Cooler |

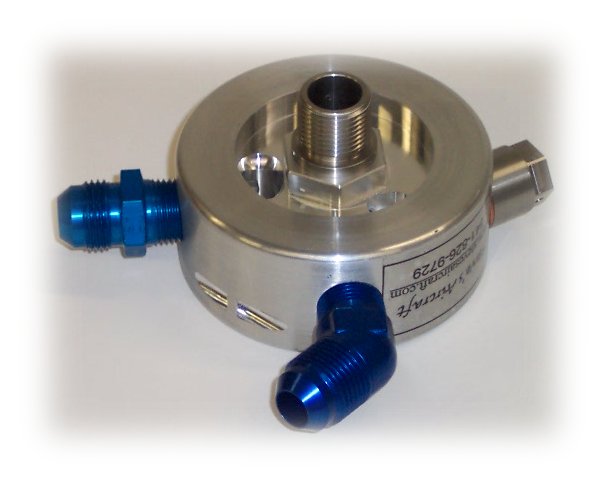

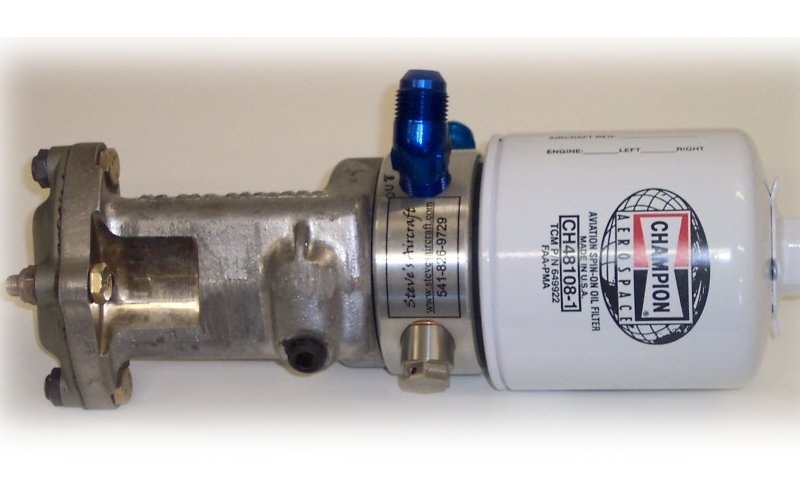

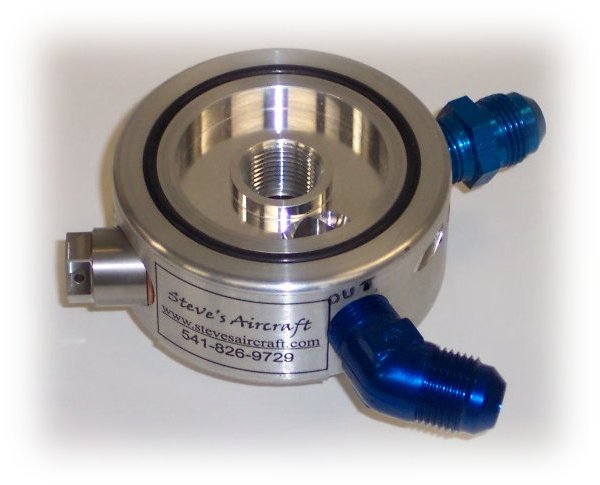

Oil Cooler Block |
||||
|
|
|
||

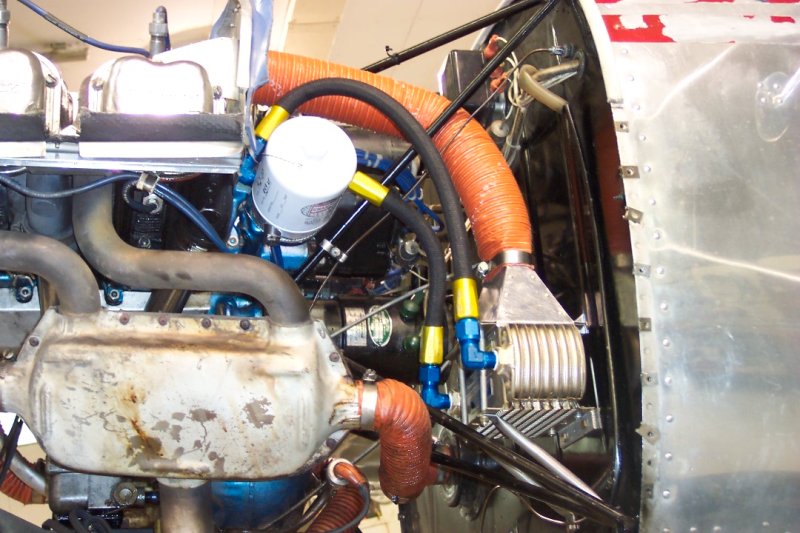

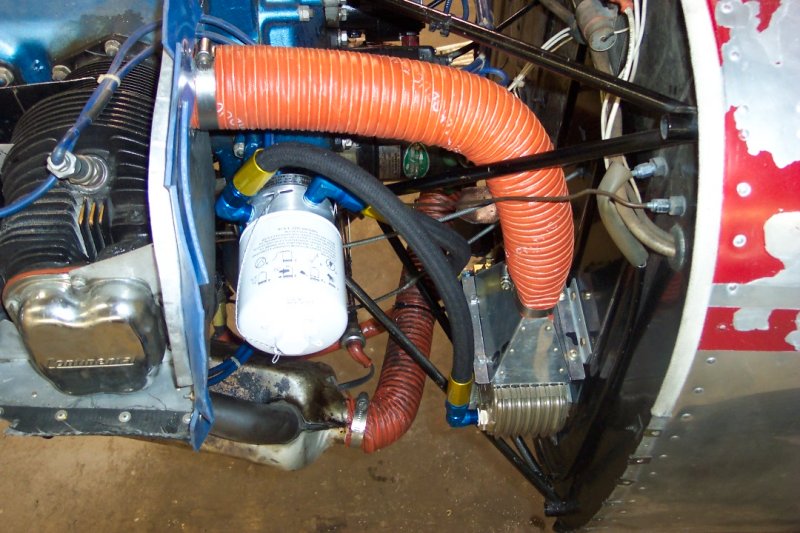

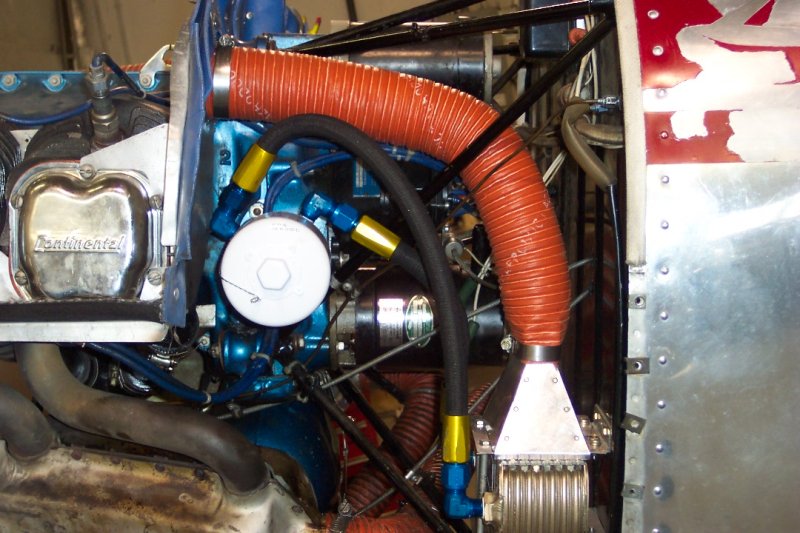

140 Install Images | ||||
|
|
|
||
| Approved Model List | T.C. | Must Have Approved Continental Engine |
| Aeronca 11BC, S11BC | A-761 | C-85 engine. |
| Aeronca 11CC, S11CC | A-796 | C-85 engine. |
| Aeronca 15AC | A-802 | C-145 or 0-300 engine. |
| Aeronca 7BCM, 7DC, S7DC, Army L-16A | A-759 | C-85 engine. |
| Aeronca 7CCM, S7CCM, Army L-16B, 7EC, S7EC, 7FC, 7JC | A-759 | C-90 engine. |
| Aeronca 7ECA | A-759 | 0-200 engine. |
| Cessna 120, 140 | A-768 | C-85 or C-90 engine. |
| Cessna 140A | 5A2 | C-90 engine. |
| Cessna 150, 150A, 150B, 150C, 150D, 150E, 150F, 150G, 150H, 150I, 150J, 150K, 150L, 150M | 3A19 | 0-200 engine. |
| Cessna 170, 170A, 170B | A-799 | C-145 or 0-300 engine. |
| Cessna 172, 172A, 172B, 172C, 172D, 172E, 172F, 172G, 172H | 3A12 | 0-300 engine. |
| Emigh Trojan A-2 | A-801 | C-85 engine. |
| Funk B85C | A-715 | C-85 or C-90 engine. |
| Luscomb 8E, 8F, T8F | A-694 | C-85 or C-90 engine. |
| Maule M-4, M4C, M4S, M4T | 3-A23 | 0-300 engine. |
| Meyers MAC-125C | 3AI | C-125 engine. |
| Meyers MAC-145 | 3AI | C-145 engine. |
| Piper J-3 | A-691 | Piper Option 311 C(7), C(8), C(9) or C(10) engine. |
| Piper PA-11 | A-691 | Piper Option 311 D(4) or D(5) engine. |
| Piper PA-18, PA-19 | 1A2 | C-90 engine. |
| Rearwin 185 | A-729 | C-85 engine. |
| Swift GC-1A | A-766 | C-85 engine. |
| Swift GC-1B | A-766 | C-125 engine. |
| Taylorcraft BC12D-85, BCS12D-85, BC12D-4-85, BCS12D-4-85 | A-696 | C-85 engine. |
| Taylorcraft Model 19 | 1A9 | C-85 engine. |
| Taylorcraft Model F19 | 1A9 | 0-200 engine. |
| Univair (Alon) A2, A2A | A-787 | C-90 engine. |
| Univair (Erco) E, G | A-787 | C-85 engine. |
| Univair (Forney) F-1, F-1A | A-787 | C-90 engine. |
| Univair (Mooney) M10 | A-787 | C-90 engine. |
